K series SIK-S,SAK-S Carbon Steel Duty,Steel/Bronze

Publisher: Wuxi Unifor Technology Co.,Ltd. Release time:2018-9-26 18:24:58 Hits: 54 Close

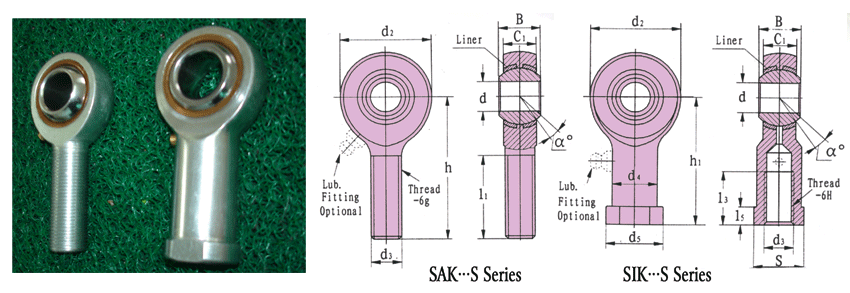

Rod End No.

Dimensions in Millimeters

α°



Radial Static Load

(KN)



d

B

C1



max

d2



max

d3



Thread

Male

Female



Male

Female

h

l1

min

h1



l3

min

d4

max

d5

max

l5

max

S



Male

Female



SAK5S

SIK5 S

5

8

6

16

M5

33

20

27

14

9.0

11

4

9

13

4.8

7.6



SAK6 S

SIK6 S

6

9

6.75

18

M6

36

22

30

14

10.0

13

5

11

13

6.8

9.1



SAK8 S

SIK8 S

8

12

9

22

M8

42

25

36

17

12.5

16

5

14

14

12



SAK10 S

SIK10 S

10

14

10.5

26

M10

48

29

43

21

15.0

19

6.5

17

14

17



SAK12 S

SIK12 S

12

16

12

30

M12

54

33

50

24

17.5

22

6.5

19

13

22



SAK14 S

SIK14 S

14

19

13.5

34

M14

60

36

57

27

20.0

25

8

22

16

27



SAK16 S

SIK16 S

16

21

15

38

M16

66

40

64

33

22.0

27

8

22

15

32



SAK18 S

SIK18 S

18

23

16.5

42

M18x1.5

72

44

71

36

25.0

31

10

27

15

38



SAK20 S

SIK20 S

20

25

18

46

M20x1.5

78

47

77

40

27.5

34

10

30

15

46



SAK22 S

SIK22 S

22

28

20

50

M22x1.5

84

51

84

43

30.0

37

12

32

15

52

SAK25 S

SIK25 S

25

31

22

60

M24x2.0

94

57

94

48

33.5

42

12

36

15

96

SAK28 S

SIK28 S

28

35

25

66

M27x2.0

103

62

103

53

37.0

46

12

41

15

104

SAK30 S

SIK30 S

30

37

25

70

M30x2.0

110

66

110

56

40.0

50

15

41

17

124


Tolerances in Millimeters

Bore  Dia.

dH7

B

h

h1

5,6

+0.012

0





0

-0.15



+0.80

-1.2

+0.65

-1.05

8,10

+0.015

0

+0.80

-1.20

12,

+0.018

0

14,16,18



0

-0.20

20

+0.021

0

22,25,28,30

+1.00

-1.70

+1.00

-1.70



Carbon Steel Standard Duty, Alloy Steel Duty & Stainless Steel Duty Available

Specifications

Body

Ball

Liner

Carbon Steel Duty

SAK---S,  SIK---S

Carbon steel, protective coated

SAE52100 steel,

 heat treated & hard

chrome plated

Tin bronze

Alloy Steel Duty

SAK---S/H, SIK---S/H

Alloy steel, heat treated protective coated

Stainless Steel Duty

SAK---S/X, SIK--- S/X

Stainless steel

AISI 440C stainless steel, heat treated



Notes:

1. For alloy steel duty add ”/H” to suffix, and stainless steel duty add"/X", example: SAK16S/H, SIK8S/X.  For load rating of alloy steel duty, please consult Unifor Technology Department.

2. Add ”L” to prefix to indicate left hand thread, example: SILK16S.

3. For lubrication fitting add ”Z” to suffix, example: SAK12SZ.

4. Fine threads M10x1.25  M12x1.25  M16x1.5 are available.

5. Die forged bodies are available for size d6mm.
