Rod End No.
|
Dimensions in Millimeters
|
α°
≈
|
Radial Static Load
(KN)
|
|
|
d
|
B
|
C1
max
|
d2
max
|
d3
Thread
|
Male
|
Female
|
|
|
Male
|
Female
|
h
|
l1
min
|
h1
|
l3
min
|
d4
max
|
d5
max
|
l5
max
|
S
|
|
|
|
Male
|
Female
|
|
|
SAJK5C
|
SIJK5C
|
5
|
8
|
7.5
|
18
|
M5
|
33
|
9
|
27
|
8
|
9.0
|
12
|
4
|
10
|
4
|
4.8
|
12
|
|
|
SAJK6C
|
SIJK6C
|
6
|
9
|
7.5
|
20
|
M6
|
36
|
21
|
30
|
9
|
10.0
|
13
|
5
|
10
|
9
|
6.8
|
13
|
|
|
SAJK8C
|
SIJK8C
|
8
|
12
|
9.5
|
24
|
M8
|
42
|
25
|
36
|
12
|
12.5
|
16
|
5
|
13
|
12
|
12
|
18
|
|
|
SAJK10C
|
SIJK10C
|
10
|
14
|
11.5
|
30
|
M10
|
48
|
28
|
43
|
15
|
15.0
|
19
|
6.5
|
16
|
10
|
20
|
29
|
|
|
SAJK12C
|
SIJK12C
|
12
|
16
|
12.5
|
34
|
M12
|
54
|
32
|
50
|
18
|
17.5
|
22
|
6.5
|
18
|
12
|
29
|
35
|
|
|
SAJK14C
|
SIJK14C
|
14
|
19
|
14.5
|
38
|
M14
|
60
|
36
|
57
|
21
|
20.0
|
25
|
8
|
21
|
14
|
40
|
43
|
|
|
SAJK16C
|
SIJK16C
|
16
|
21
|
15.5
|
42
|
M16
|
66
|
37
|
64
|
24
|
22.0
|
27
|
8
|
24
|
14
|
49
|
|
|
SAJK18C
|
SIJK18C
|
18
|
23
|
17.5
|
46
|
M18x1.5
|
72
|
41
|
71
|
27
|
25.0
|
31
|
10
|
27
|
13
|
58
|
|
|
SAJK20C
|
SIJK20C
|
20
|
25
|
18.5
|
50
|
M20x1.5
|
78
|
45
|
77
|
30
|
27.0
|
34
|
10
|
30
|
14
|
66
|
|
|
SAJK22C
|
SIJK22C
|
22
|
28
|
21.0
|
56
|
M22x1.5
|
84
|
48
|
84
|
33
|
30.0
|
37
|
12
|
34
|
14
|
89
|
|
|
SAJK25C
|
SIJK25C
|
25
|
31
|
23.0
|
60
|
M24x2.0
|
94
|
55
|
94
|
36
|
33.5
|
42
|
12
|
36
|
14
|
95
|
|
|
SAJK28C
|
SIJK28C
|
28
|
35
|
25.0
|
66
|
M27x2.0
|
103
|
62
|
103
|
41
|
37.0
|
46
|
14
|
41
|
14
|
115
|
|
|
SAJK30C
|
SIJK30C
|
30
|
37
|
26.0
|
70
|
M30x2.0
|
110
|
66
|
110
|
45
|
40.0
|
50
|
15
|
41
|
15
|
120
|
|
Tolerances in Millimeters
|
Bore Dia.
|
dH7
|
B
|
h
|
h1
|
|
5,6
|
+0.012
0
|
0
-0.15
|
+0.80
-1.2
|
+0.65
-1.05
|
|
8,10
|
+0.015
0
|
+0.80
-1.20
|
|
12,
|
+0.018
0
|
|
14,16,18
|
0
-0.20
|
|
20
|
+0.021
0
|
|
22,25,28,30
|
+1.00
-1.70
|
+1.00
-1.70
|
Carbon Steel Standard Duty Alloy Steel Duty Available
|
Specifications
|
Body
|
Race
|
Ball
|
|
Carbon Steel Duty

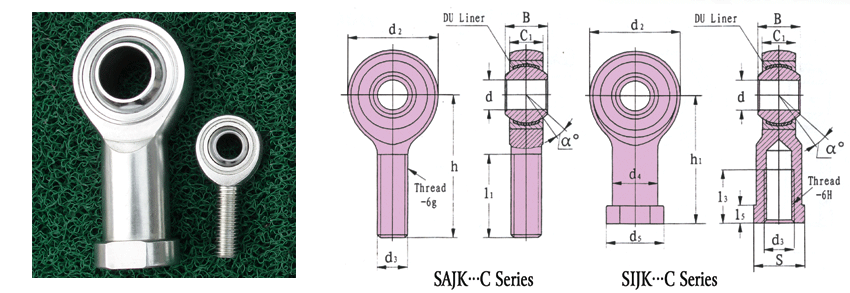

SAJK---C, SIJK---C
|
Carbon steel, protective coated
|
Carbon steel, heat treated,
protective coated, DU liner
|
SAE52100 steel, heat treated & hard chrome plated
|
|
Alloy Steel Duty
SAJK---C/H, SIJK---C/H
|
Alloy steel, protective coated
|
Notes:
1. For alloy steel duty add "/H" to suffix, example: SAJK16C/H. For load rating of alloy steel duty, please consult Unifor Technology Department.
2. Add "L" to prefix to indicate left hand thread, example: SILJK16C/H.
3. Fine thread M10x1.25 M12x1.25 M16x1.5 are available.
4.Die forged bodies are available for size d≥12mm. |
