SIZK-S/H SAZK-S/H Precision Alloy Steel Duty Steel/Bronze

Publisher: Wuxi Unifor Technology Co.,Ltd. Release time:2018/9/26 21:22:03 Hits: 967 Close

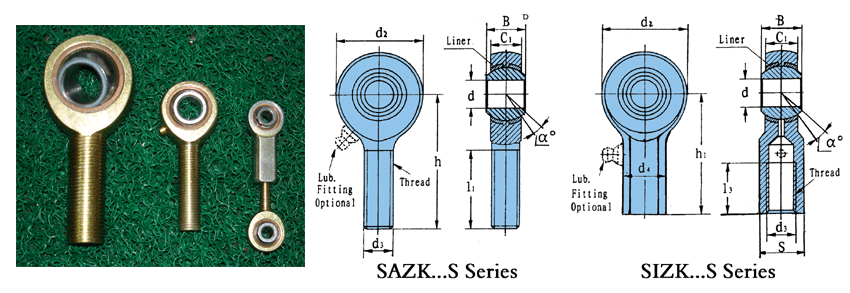

Male Rod End No.



Dimensions in Inches

α°





Radial Static Load

(lbs)



d

+0.0015

-0.0005

B

+0.00

-0.005

C1



Ref.

h

+.005

-.005

d2

+.010

-.010

Ball

Dia.

Ref.

l1

+.062

-.061

d3

Thread

UNF-3A

Right

Hand

Left

Hand

SAZK3S

SALZK3S

.1900

.312

.250

1.250

0.625

.437

.750

10-32

13

1820



SAZK4S

SALZK4S

.2500

.375

.281

1.562

.750

.500

1.000

1/4-28

16

3360



SAZK5S

SALZK5S

.3125

.437

.344

1.875

.875

.625

1.250

5/16-24

14

4320



SAZK6S

SALZK6S

.3750

.500

.406

1.938

1.000

.719

1.250

3/8-24

12

7920



SAZK7S

SALZK7S

.4375

.562

.437

2.125

1.125

.812

1.375

7/16-20

14

9840



SAZK8S

SALZK8S

.5000

.625

.500

2.438

1.312

.937

1.500

1/2-20

12

13450



SAZK10S

SALZK10S

.6250

.750

.562

2.625

1.500

1.125

1.625

5/8-18

16

14870



SAZK12S

SALZK12S

.7500

.875

.687

2.875

1.750

1.312

1.750

3/4-16

14

22380




Female Rod End No.



Dimensions in Inches

α°





Radial Static Load

(lbs)



d

+0.0015

-0.0005

B

+0.00

-0.005

C1



Ref.

h

+.005

-.005

d2

+.010

-.010

d4

+.010

-.010

S

+.010

-.010

Ball

Dia.

Ref.

l3

+.062

-.061

d3

Thread

UNF-3A

Right

Hand

Left

Hand

SIZK3S

SIZK3S

.1900

.312

.250

1.250

0.625

.406

.312

.437

.562

10-32

13

1820



SIZK4S

SILZK4S

.2500

.375

.281

1.562

.750

.469

.375

.500

.750

1/4-28

16

3360



SIZK5S

SILZK5S

.3125

.437

.344

1.875

.875

.500

.437

.625

.750

5/16-24

14

4320



SIZK6S

SILZK6S

.3750

.500

.406

1.938

1.000

.687

.562

.719

.937

3/8-24

12

7920



SIZK7S

SILZK7S

.4375

.562

.437

2.125

1.125

.750

.625

.812

1.062

7/16-20

14

9840



SIZK8S

SILZK8S

.5000

.625

.500

2.438

1.312

.875

.750

.937

1.187

1/2-20

12

13450



SIZK10S

SILZK10S

.6250

.750

.562

2.625

1.500

1.000

.875

1.125

1.500

5/8-18

16

14870



SIZK12S

SILZK12S

.7500

.875

.687

2.875

1.750

1.125

1.000

1.312

1.750

3/4-16

14

22380




Carbon Steel Standard Duty , Alloy Steel Duty & Stainless Steel Duty Available

Specifications

Body

Ball

Liner

Carbon Steel Duty

S—ZK  ---SSeries

Carbon steel, protective coated

SAE52100 steel, heat treated & and

chrome plated

Tin bronze

Alloy Steel Duty

S—ZK  ---S/HSeries

Alloy steel, protective coated

Stainless Steel Duty

S—ZK  ---S/XSeries

Stainless steel 304

AISI 440C stainless steel, heat treated

Notes:

1.       For alloy steel duty add ”/H” to suffix, and stainless steel duty add ”/X”,  example: SAZK8S/H SILZK10S/X. For load rating of alloy steel duty and stainless steel duty, please consult Unifor Technology Departmen.

 2.   For lubrication fitting add ”Z” to suffix, example: SAZK10SZ/X.
