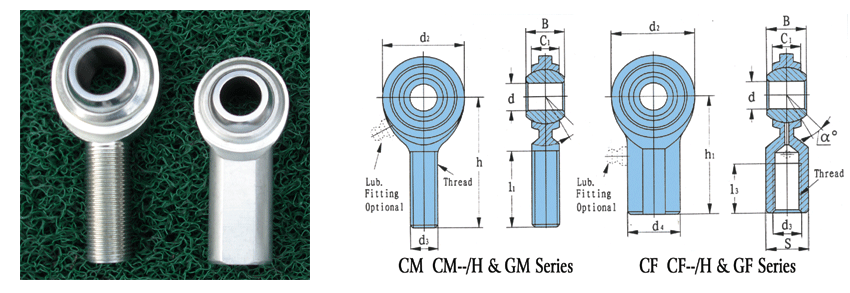

Male Rod End No.
|
Dimensions in Inches
|
α°
≈
|
Radial Static Load(lbs)
|
|
C Series
|
G Series
|
D
+0.0015
-0.0005
|
B
+0.00
-0.005
|
C1
Ref.
|
h
+.015
-.015
|
d2
+.010
-.010
|
Ball
Dia.
Ref.
|
l 1
+.062
-.061
|
d3
Thread
UNF-3A
|
|
Right
Hand
|
Left
Hand
|
Right
Hand
|
Left
Hand
|
C
Series
|
C--/H
Series
|
G
Series
|
|
CMR3*
|
CML3*
|
GMR3*
|
GML3*
|
.1900
|
.312
|
.234
|
1.250
|
.625
|
.437
|
.750
|
10-32
|
10
|
1,600
|
2,290
|
1,200
|
|
CMR4*
|
CML4*
|
GML4*
|
GML4*
|
.2500
|
.375
|
.250
|
1.562
|
.750
|
.500
|
1.000
|
1/4-28
|
13.5
|
3,050
|
4,200
|
2,100
|
|
CMR5*
|
CML5
|
GMR5*
|
GML5*
|
.3125
|
.437
|
.312
|
1.875
|
.875
|
.625
|
1.250
|
5/16-24
|
11
|
4,930
|
6,90
|
3,400
|
|
CMR6
|
CML6
|
GMR6
|
GML6
|
.3750
|
.500
|
.359
|
1.938
|
1.000
|
.719
|
1.250
|
3/8-24
|
11
|
6,990
|
9,630
|
4,800
|
|
CMR7
|
CML7
|
GMR7
|
GML7
|
.4375
|
.562
|
.406
|
2.125
|
1.125
|
.812
|
1.375
|
7/16-20
|
10.5
|
8,750
|
12,950
|
6,000
|
|
CMR8
|
CML8
|
GMR8
|
GML8
|
.5000
|
.625
|
.453
|
2.438
|
1.312
|
.937
|
1.500
|
1/2-20
|
10
|
11,500
|
15,840
|
77,00
|
|
CMR10
|
CML10
|
GMR10
|
GML10
|
.6250
|
.750
|
.484
|
2.625
|
1.500
|
1.125
|
1.625
|
5/8-18
|
13
|
13,400
|
18,450
|
87,00
|
|
CMR12
|
CML12
|
GMR12
|
GML12
|
.7500
|
.875
|
.593
|
2.875
|
1.175
|
1.312
|
1.750
|
3/4-16
|
12
|
19,600
|
26,990
|
12,000
|
|
Female Rod End No.
|
Dimensions in Inches
|
α°
≈
|
Radial Static Load(lbs)
|
|
C Series
|
G Series
|
D
+0.0015
-0.0005
|
B
+0.00
-0.005
|
C1
Ref.
|
h
+.015
-.015
|
d2
+.010
-.010
|
Ball
Dia.
Ref.
|
l1
+.062
-.061
|
d3
Thread
UNF-3A
|
|
Right
Hand
|
Left
Hand
|
Right
Hand
|
Left
Hand
|
C
Series
|
C--/H
Series
|
G
Series
|
|
CFR3*
|
CFL3*
|
GFR3*
|
GFL3*
|
.1900
|
.312
|
.234
|
1.250
|
.625
|
.437
|
.750
|
10-32
|
10
|
1,600
|
2,290
|
1,200
|
|
CFR4*
|
CFL4*
|
GFR4*
|
GFL4*
|
.2500
|
.375
|
.250
|
1.562
|
.750
|
.500
|
1.000
|
1/4-28
|
13.5
|
3,050
|
4,200
|
2,100
|
|
CFR5*
|
CFL5
|
GFR5*
|
GFL5*
|
.3125
|
.437
|
.312
|
1.875
|
.875
|
.625
|
1.250
|
5/16-24
|
11
|
4,930
|
6,90
|
3,400
|
|
CFR6
|
CFL6
|
GFR6
|
GFL6
|
.3750
|
.500
|
.359
|
1.938
|
1.000
|
.719
|
1.250
|
3/8-24
|
11
|
6,990
|
9,630
|
4,800
|
|
CFR7
|
CFL7
|
GFR7
|
GFL7
|
.4375
|
.562
|
.406
|
2.125
|
1.125
|
.812
|
1.375
|
7/16-20
|
10.5
|
8,750
|
12,950
|
6,000
|
|
CFR8
|
CFL8
|
GFR8
|
GFL8
|
.5000
|
.625
|
.453
|
2.438
|
1.312
|
.937
|
1.500
|
1/2-20
|
10
|
11,500
|
15,840
|
77,00
|
|
CFR10
|
CFL10
|
GFR10
|
GFL10
|
.6250
|
.750
|
.484
|
2.625
|
1.500
|
1.125
|
1.625
|
5/8-18
|
13
|
13,400
|
18,450
|
87,00
|
|
CFR12
|
CFL12
|
GFR12
|
GFL12
|
.7500
|
.875
|
.593
|
2.875
|
1.175
|
1.312
|
1.750
|
3/4-16
|
12
|
19,600
|
26,990
|
12,000
|
|
Specifications
|
Body
|
Ball
|
|
Carbon Steel Duty
”C” Series
|
Carbon steel, heat treated protective
|
SAE52100 steel, heat treated & hard chrome plated
|
|
Alloy Steel Duty
”C--/H” Series
|
Alloy steel, heat treated protective coated
|
SAE52100 steel, heat treated & hard chrome plated
|
|
Standard Duty
”G” Series
|
Stainless steel 304, Passivated
|
AISI 440C stainless steel, heat treated
|
Note:
1. For PTFE woven fabric liners add ”T” to suffix, example: CMR6T.
2. For lubrication fitting add ”Z” to suffix, example: CMR7Z.
|
