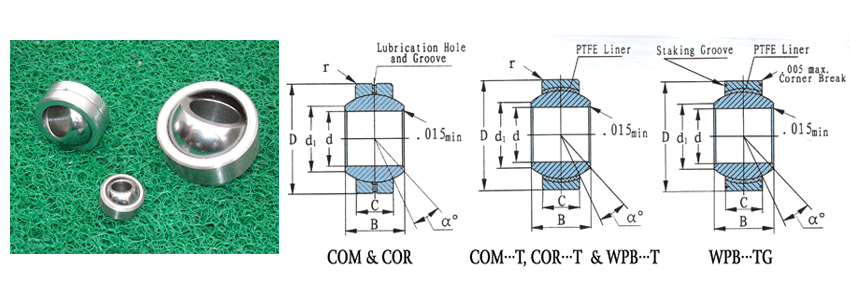

COM & COR Series
|
Dimensions in Inches
|
α°
≈
|
Radial Static Load(lbs)
|
|
Bearing No.
|
d
+0.0015
-0.0005
|
D
+0.0000
-0.0005
|
C
+.005
-.005
|
B
+.000
-.002
|
d1
Ref.
|
r
Chamfer
Ref.
|
|
COM2
|
|
COR2
|
|
.1650
|
.4687
|
.187
|
.250
|
.235
|
.020
|
9
|
44,00
|
|
COM3
|
COM3T
|
COR3
|
COR3T
|
.1900
|
.5625
|
.218
|
.281
|
.293
|
.020
|
11
|
75,40
|
|
COM4
|
COM4T
|
COR4
|
COR4T
|
.2500
|
.6562
|
.250
|
.343
|
.364
|
.022
|
13.5
|
11,280
|
|
COM5
|
COM5T
|
COR5
|
COR5T
|
.3125
|
.7500
|
.281
|
.375
|
.419
|
.032
|
12
|
13,580
|
|
COM6
|
COM6T
|
COR6
|
COR6T
|
.3750
|
.8125
|
.312
|
.406
|
.516
|
.032
|
10
|
18,380
|
|
COM7
|
COM7T
|
COR7
|
COR7T
|
.4375
|
.9062
|
.343
|
.437
|
.530
|
.032
|
8
|
22,900
|
|
COM8
|
COM8T
|
COR8
|
COR8T
|
.5000
|
1.0000
|
.390
|
.500
|
.600
|
.032
|
9.5
|
30,680
|
|
COM9
|
COM9T
|
COR9
|
COR9T
|
.5625
|
1.0937
|
.437
|
.562
|
.671
|
.032
|
9.5
|
38,140
|
|
COM10
|
COM10T
|
COR10
|
COR10T
|
.6250
|
1.1875
|
.500
|
.625
|
.739
|
.032
|
8.5
|
49,800
|
|
COM12
|
COM12T
|
COR12
|
COR12T
|
.7500
|
1.4375
|
.593
|
.750
|
.920
|
.044
|
9
|
72,320
|
|
COM14
|
COM14T
|
COR14
|
COR14T
|
.8750
|
1.5625
|
.703
|
.875
|
.980
|
.044
|
9.5
|
97,900
|
|
COM16
|
COM16T
|
COR16
|
COR16T
|
1.0000
|
1.7500
|
.797
|
1.000
|
1.118
|
.044
|
10
|
12,9400
|
|
WPB Series
|
Dimensions in Inches
|
α°
≈
|
Radial Static Load(lbs)
|
|
d
+.0000
-.0005
|
D
+.0000
-.0005
|
C
+.005
-.005
|
B
+.000
-.002
|
d1
Ref.
|
r
Chamfer
|
|
Bearing No.
|
min
|
max
|
Radial
|
Axial
|
|
WPB4T
|
WPB4TG
|
.2500
|
.6250
|
.327
|
.437
|
.300
|
.01
|
.04
|
15
|
5,500
|
1,700
|
|
WPB5T
|
WPB5TG
|
.3125
|
.6875
|
.317
|
.437
|
.360
|
.01
|
.04
|
14
|
9,400
|
1,640
|
|
WPB6T
|
WPB6TG
|
.3750
|
.8125
|
.406
|
.500
|
.466
|
.01
|
.04
|
8
|
13,700
|
2,630
|
|
WPB7T
|
WPB7TG
|
.4375
|
.9375
|
.442
|
.562
|
.537
|
.01
|
.04
|
10
|
20,700
|
3,650
|
|
WPB8T
|
WPB8TG
|
.5000
|
1.0000
|
.505
|
.625
|
.607
|
.01
|
.04
|
9
|
21,400
|
4,970
|
|
WPB9T
|
WPB9TG
|
5652
|
1.1250
|
.536
|
.687
|
.721
|
.01
|
.04
|
10
|
26,600
|
5,370
|
|
WPB10T
|
WPB10TG
|
.6250
|
1.1875
|
.567
|
.750
|
.747
|
.01
|
.04
|
12
|
29,000
|
6,130
|
|
WPB12T
|
WPB12TG
|
.7500
|
1.3750
|
.630
|
.875
|
.845
|
.01
|
.04
|
13
|
37,000
|
7,730
|
|
WPB14T
|
WPB14TG
|
.8750
|
1.6250
|
.775
|
.875
|
.995
|
.01
|
.04
|
6
|
62,000
|
10,800
|
|
WPB16T
|
WPB16TG
|
1.0000
|
2.1250
|
1.005
|
1.375
|
1.269
|
.01
|
.04
|
12
|
104,000
|
19,300
|
|
Specifications
|
Race
|
Ball
|
|
“COM” Series
|
Alloy steel, heat treated protective coated
|
SAE52100 steel, heat treated & hard chrome plated
|
|
“COR” Series & ”WPB” Series
|
Stainless steel 420, heat treated
|
AISI 440C stainless steel, heat treated
|
|
